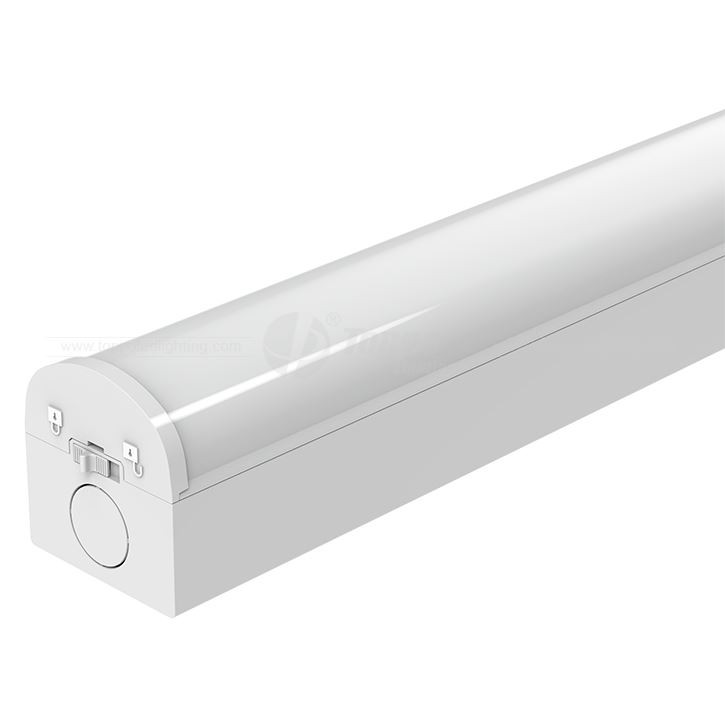

140-150lm/w Easy Installation Wega Batten Light With Safety Lock

Wega batten is new developed product with safety lock for easy installation, high lumen efficacy up to 140-150lm/w. Offering Tri-color (3000K/4000K/5000K) and linkable function. Osram ON-OFF and DALI as standard driver, which can also achieve external PIR sensor. It's widely used in office lighting, commercial lighting for replacement of T5/T8 Fluorescent fitting.

Enviar la consulta

Wega Batten -2(1)_00.jpg

Produce Show

Features:	Options:
● Patent design for T8 fluorescent fitting	● Multiple Function: ON-OFF / DALI / PIR
● High lumen output at 120-130lm/w or 140-150LM/W	● Osram LED driver as standard
● Safety Lock for easy installation	● Single Color or Tri-color
● Multiple Link through end hole	● End cable or rear cable entry
● Flicker free 5 years warranty

Data Sheet

Order Code	Product Name	Wattage	Lumen Output	Lumen Efficiency	CRI	CCT	AC Input	Power Factor	Dimension(mm)
BT02-10PN1- WGN1S-001	60CM-10W Wega batten	10W	1250LM	125LM/W	Ra>80	3000/4000/ 5000/6000K	AC200-240V	PF>0.95	L600 X W55 XH59
BT04-18PN1- WGN1S-001	120CM-18W Wega batten	18W	2250LM	125LM/W	Ra>80	3000/4000/ 5000/6000K	AC200-240V	PF>0.95	L1200 X W55 XH59
BT04-35PN1- WGN1S-001	120CM-35W Wega batten	35W	4350LM	125LM/W	Ra>80	3000/4000/ 5000/6000K	AC200-240V	PF>0.95	L1200 X W55 XH59
BT05-22PN1- WGN1S-001	150CM-22W Wega batten	22W	2750LM	125LM/W	Ra>80	3000/4000/ 5000/6000K	AC200-240V	PF>0.95	L1500 X W55 XH59
BT05-29PN1- WGN1S-001	150CM-29W Wega batten	29W	3600LM	125LM/W	Ra>80	3000/4000/ 5000/6000K	AC200-240V	PF>0.95	L1500 X W55 XH59
BT05-35PN1- WGN1S-001	150CM-35W Wega batten	35W	4350LM	125LM/W	Ra>80	3000/4000/ 5000/6000K	AC200-240V	PF>0.95	L1500 X W55 XH59
BT05-55PN1- WGN1S-001	150CM-55W Wega batten	55W	6850LM	125LM/W	Ra>80	3000/4000/ 5000/6000K	AC200-240V	PF>0.95	L1500 X W55 XH59
BT06-35PN1- WGN1S-001	180CM-35W Wega batten	35W	4350LM	125LM/W	Ra>80	3000/4000/ 5000/6000K	AC200-240V	PF>0.95	L1800 X W55 XH59
BT06-55PN1- WGN1S-001	180CM-55W Wega batten	55W	6850LM	125LM/W	Ra>80	3000/4000/ 5000/6000K	AC200-240V	PF>0.95	L1800 X W55 XH59
